/ Published in Filter

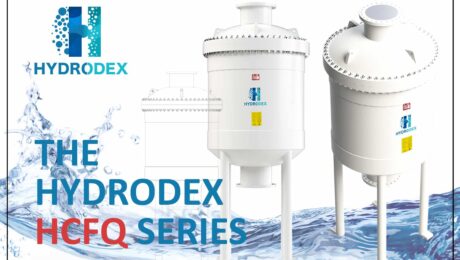

Hydrodex HCFQ Series FRP Cartridge Filter Housing
/ Published in Filter

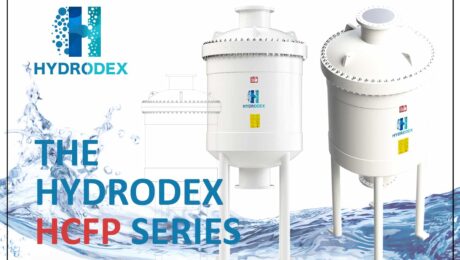

Hydrodex HCFP Series FRP Cartridge Filter Housing
/ Published in Filter
Hydrodex HCFO Series FRP Cartridge Filter Housing
/ Published in Filter

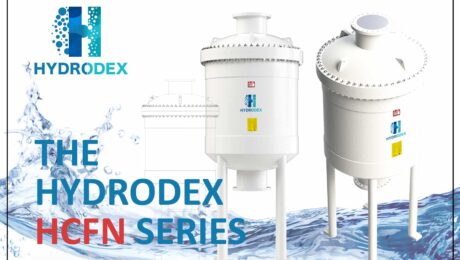

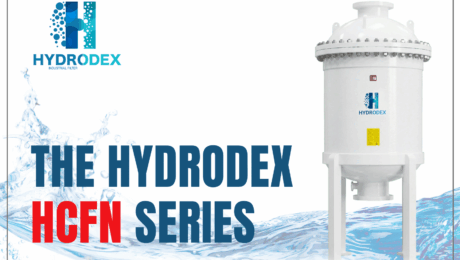

Hydrodex HCFN Series FRP Cartridge Filter Housing
Wednesday, 15 January 2020 / Published in

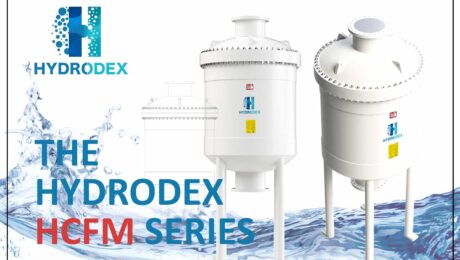

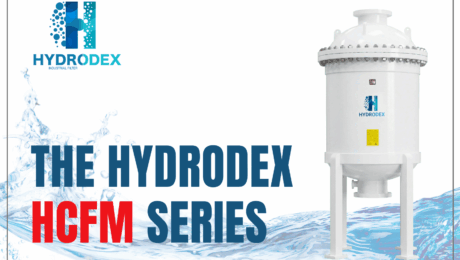

Hydrodex HCFM Series FRP Cartridge Filter Housing

HYDRODEX HCFM SERIES OF CARTRIDGE FILTER

Hydrodex has employed the advantages of FRP material and used its special inherent strength and corrosion resistance technology to provide a superior filter vessel that is the best choice for a wide variety of uses.

The HCFM Series contains 234 filter cartridge inside a 1200mm barrel. Cartridge filters flow rates are designed at 5 gpm per 10″ equivalent of filter cartridges which is the recommended flow rate for sizing.

The Hydrodex line of vessels and filtration systems provide exceptional chemical resistance and outstanding tensile strength.

  • HCFM housings are constructed from a proprietary fiberglass reinforced plastic barrel manufactured with a flexible and fatigue-resistant vinyl ester resin.
  • Seamless construction adds strength and longevity.
  • Engineered to minimize downtime; easy to clean and replace parts.
  • Internal components are constructed of ABS. PVC and other materials are also available for specialized applications.
  • Externals are constructed of anodized ASME accepted aluminum & 316 stainless steel with other materials optional.
  • Buna O-rings are standard, Viton is also available upon request.

The following flow rates are suggested for standard use, significantly higher rates may be obtained with corresponding pressure drop.

HCFM Product Flow Rate Filter Cartridge Size Number of Cartridges
234HCFM30-12FF 3,510 GPM 30″ 234
234HCFM40-12FF 4,680 GPM 40″ 234
234HCFM50-12FF 5,850 GPM 50″ 234
Wednesday, 15 January 2020 / Published in

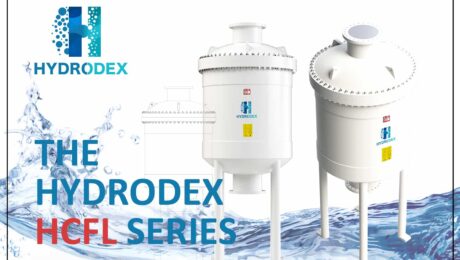

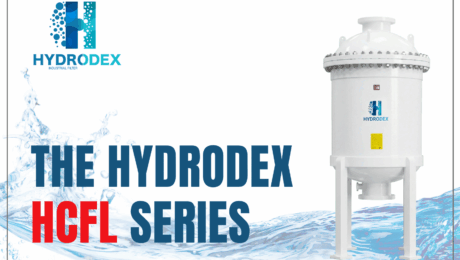

Hydrodex HCFL Series FRP Cartridge Filter Housing

HYDRODEX HCFL SERIES OF CARTRIDGE FILTER

Hydrodex has employed the advantages of FRP material and used its special inherent strength and corrosion resistance technology to provide a superior filter vessel that is the best choice for a wide variety of uses.

The HCFL Series contains 183 filter cartridge inside a 1100mm barrel. Cartridge filters flow rates are designed at 5 gpm per 10″ equivalent of filter cartridges which is the recommended flow rate for sizing.

The Hydrodex line of vessels and filtration systems provide exceptional chemical resistance and outstanding tensile strength.

  • HCFL housings are constructed from a proprietary fiberglass reinforced plastic barrel manufactured with a flexible and fatigue-resistant vinyl ester resin.
  • Seamless construction adds strength and longevity.
  • Engineered to minimize downtime; easy to clean and replace parts.
  • Internal components are constructed of ABS. PVC and other materials are also available for specialized applications.
  • Externals are constructed of anodized ASME accepted aluminum & 316 stainless steel with other materials optional.
  • Buna O-rings are standard, Viton is also available upon request.

The following flow rates are suggested for standard use, significantly higher rates may be obtained with corresponding pressure drop.

HCFL Product Flow Rate Filter Cartridge Size Number of Cartridges
183HCFL30-12FF 2,745 GPM 30″ 183
183HCFL40-12FF 3,660 GPM 40″ 183
183HCFL50-12FF 4,575 GPM 50″ 183
Wednesday, 15 January 2020 / Published in

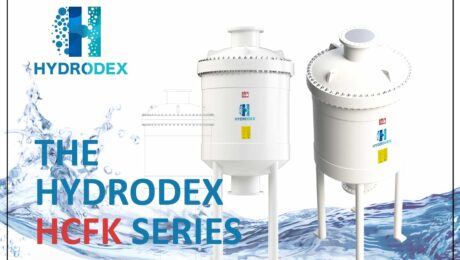

Hydrodex HCFK Series FRP Cartridge Filter Housing

HYDRODEX HCFK SERIES OF CARTRIDGE FILTER

Hydrodex has employed the advantages of FRP material and used its special inherent strength and corrosion resistance technology to provide a superior filter vessel that is the best choice for a wide variety of uses.

The HCFK Series contains 165 filter cartridge inside a 1000mm barrel. Cartridge filters flow rates are designed at 5 gpm per 10″ equivalent of filter cartridges which is the recommended flow rate for sizing.

The Hydrodex line of vessels and filtration systems provide exceptional chemical resistance and outstanding tensile strength.

  • HCFK housings are constructed from a proprietary fiberglass reinforced plastic barrel manufactured with a flexible and fatigue-resistant vinyl ester resin.
  • Seamless construction adds strength and longevity.
  • Engineered to minimize downtime; easy to clean and replace parts.
  • Internal components are constructed of ABS. PVC and other materials are also available for specialized applications.
  • Externals are constructed of anodized ASME accepted aluminum & 316 stainless steel with other materials optional.
  • Buna O-rings are standard, Viton is also available upon request.

The following flow rates are suggested for standard use, significantly higher rates may be obtained with corresponding pressure drop.

HCFK Product Flow Rate Filter Cartridge Size Number of Cartridges
165HCFK30-12FF 2,475 GPM 30″ 165
165HCFK40-12FF 3,300 GPM 40″ 165
165HCFK50-12FF 4,125 GPM 50″ 165
Tuesday, 14 January 2020 / Published in
Hydrodex HCFJ Series FRP Cartridge Filter Housing



Hydrodex has employed the advantages of FRP material and used its special inherent strength and corrosion resistance technology to provide a superior cartridge filter housing that is the best choice for a wide variety of uses.

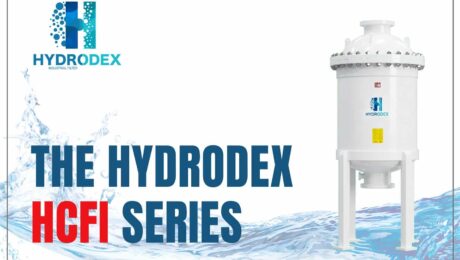

The HCFI Series of FRP filter housings contains 120 filter cartridge inside a 900mm barrel. Cartridge filters flow rates are designed at 5 gpm per 10″ equivalent of filter cartridges which is the recommended flow rate for sizing.

The Hydrodex line of cartridge filter vessels and filtration systems provide exceptional chemical resistance and outstanding tensile strength.

  • HCFI cartridge filter housings are constructed from a proprietary fiberglass reinforced plastic barrel manufactured with a flexible and fatigue-resistant vinyl ester resin.
  • Seamless construction adds strength and longevity.
  • All wetted materials meet FDA CFR title 21 requirements.
  • Engineered to minimize downtime; easy to clean and replace parts.
  • Internal components are constructed of ABS. PVC and other materials are also available for specialized applications.
  • Externals are constructed of FRP/GRV and 316 stainless steel and engineered to meet ASME Code section X.
  • EPDM O-rings are standard, Viton is also available upon request.

The following flow rates are suggested for standard use, significantly higher rates may be obtained with corresponding pressure drop.

HCFJ Product Flow Rate Filter Cartridge Size Number of Cartridges
148HCFJ40-10FF 2,070 GPM 30″ 138
148HCFJ50-10FF 2,760 GPM 40″ 138
148HCFJ70-10FF 3,450 GPM 50″ 138
